$32-35 /Piece/Pieces
| Min. sipariş: | 50 Piece/Pieces |
| Ulaşım: | Ocean |
Gölge:
Marka: Zhike
Uygulanabilir Endüstri: diğer
Garanti Dışı Servis: Çevrimiçi destek, Video teknik desteği
Yerel Hizmetler Nerede Sağlanmalı (hangi ülkelerde Yurtdışı Hizmet Satış Noktaları Vardır): Yok
Showroom Konumu (hangi ülkelerde Yurt Dışında örnek Odalar Bulunmaktadır): Yok
| Satış Birimleri | : | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it

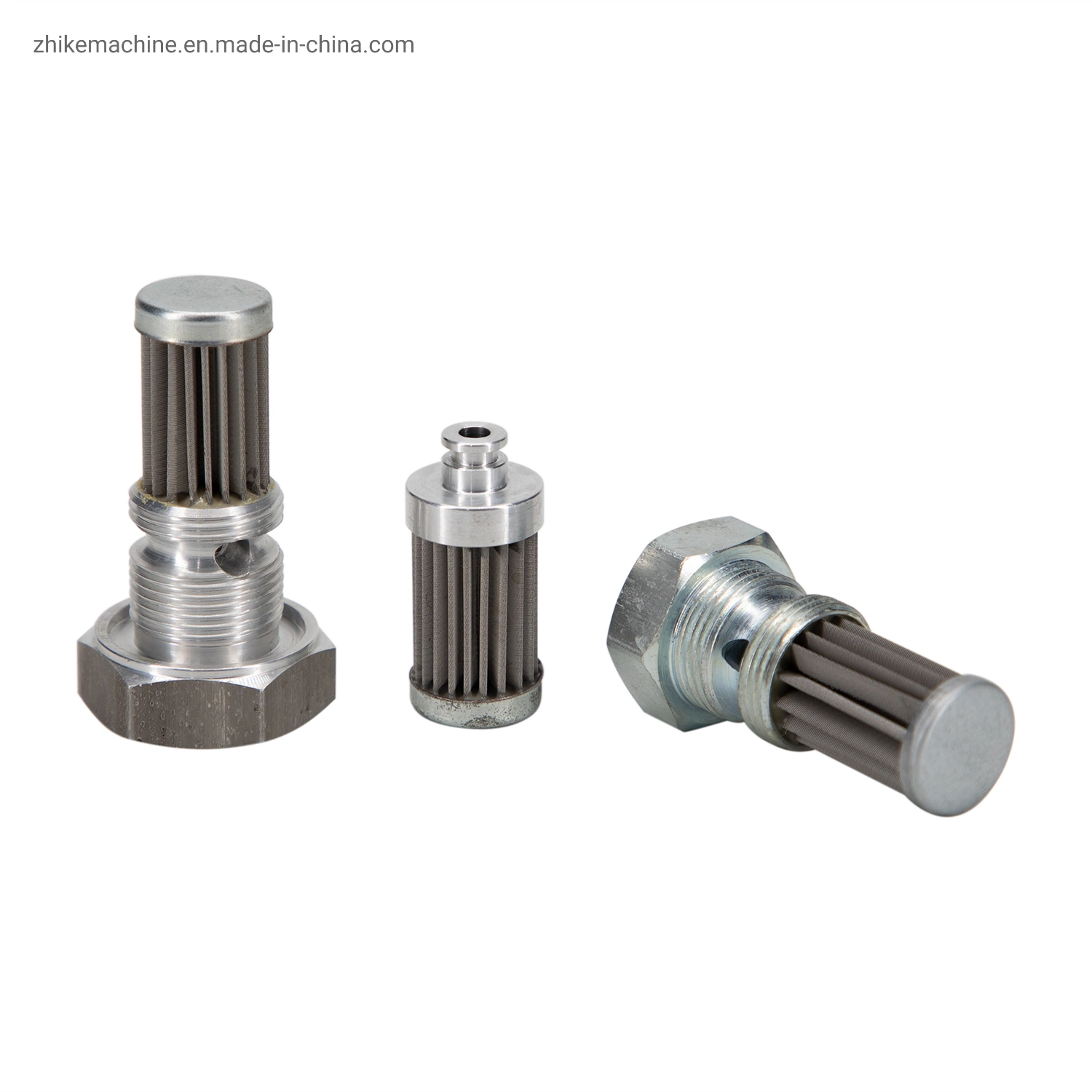

Filtre elemanının teknik parametreleri:
| Number | Name | Unit | Parameter |
| 1 | Filtration accuracy | μm | 1-100(Universal product filter element 10μm, can also be manufactured according to customer requirements) |
| 2 | Filter ratio β value | βx(c) | ≥1000 |
| 3 | Working pressure difference | bar | 0-4 |
| 4 | Filter element ultimate pressure difference | bar | ≤4 |
| 5 | Applicable medium | Petroleum base oil, water-glycol, water-oil emulsified oil, synthetic hydraulic oil | |
| 6 | Filter material | Inert gradual diameter arrangement glass fiber filter material, filament fiber non-woven fabric, stainless steel woven mesh | |
| 7 | Support material | Surface anti-corrosion protection treatment of high quality carbon structural steel | |
| 8 | Seal ring material | Nitrile rubber or fluorine rubber | |
| 9 | Filter element height | mm | 82 |
| 10 | Filter element diameter | mm | 45 |
| 11 | Expanded area of filter layer | sq | 0.052s |
| 12 | Pollution holding capacity | g | 14 |
| 13 | Medium flow direction | Outside → inside | |
| 14 | Bonding material | Epoxy adhesive | |
| 15 | Temperature range | Nitrile rubber seal-43ºC~+107ºCViton seal-29ºC~+120ºC |
